Cinoart Precision Tamp PTB-FI – automatic tamper with pressure buttons
Portafilter under the grinder, press a button: the Cinoart PTB-FI tamps the puck at 10, 20 or 30 kg, level and the same every time.
The PTB-FI is an automatic 58 mm tamper designed for Fiorenzato grinders. Three pressure buttons, adjustable tamping cycles and a guide for a level coffee bed standardise tamping in the café and at home.
Features
Cast alloy structure
Cinoart developed the structure with force analysis and thousands of fatigue tests so that it withstands high pressure. The materials are chosen to change as little as possible with repeated use.
Overcurrent protection
The fatigue tests showed that the quick movement of the tamper can generate high currents. The electronics therefore include overcurrent protection that safeguards the main board even during long periods of use.
Quick switching by button

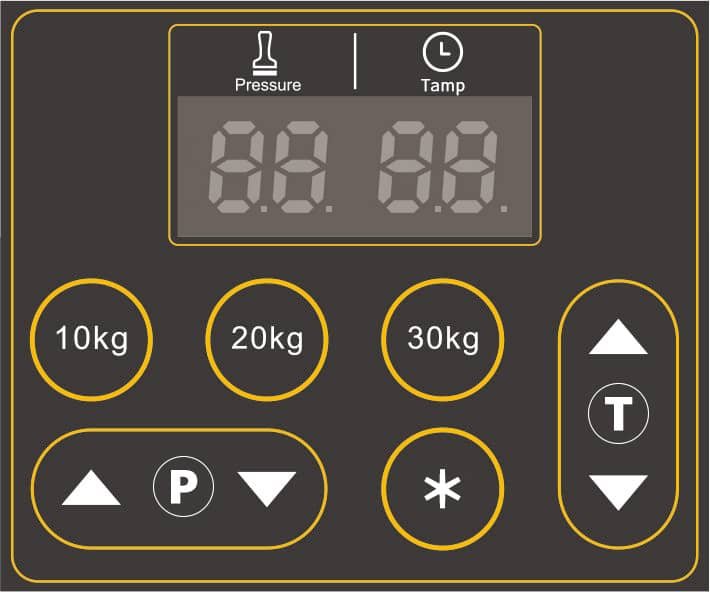

Three buttons select 10, 20 or 30 kg, for example for single and double shots. You can adjust and save the pressure of each button. The right button sets 1 to 3 tamping cycles so that no ground coffee sticks to the basket rim.
Counting function
Press the «*» button together with «20kg» to start counting the number of uses. Cafés can track how often the tamper is in use.
Guided Leveling System
A guide on the tamper keeps the surface of the coffee bed level every time. Place the portafilter on the platform; the pressing process takes 1.2 seconds.
Also fits Mazzer and Mahlkönig
The PTB-FI is built for grinders from Fiorenzato. With an additional frame it also fits, according to the manufacturer, Mazzer (Mini doser, Mini electronic A, Lux D, Super Jolly, Major, Kony, Robur, Kold) and Mahlkönig (E65S, E65S GBW, E80S, E80S GBW).
At a glance
| Type | automatic tamper |
|---|
| Tamping pressure | 10–30 kg, three pressure buttons (10 / 20 / 30 kg), each adjustable and savable |
|---|
| Tamping cycles | 1 to 3, adjustable |
|---|
| Pressing duration | 1.2 seconds |
|---|
| Tamper diameter | 58 mm |
|---|
| Levelling | Guided Leveling System (guide) |
|---|
| Housing | Metal frame and metal exterior, cast structure |
|---|
| Dimensions | 274 × 230 × 190 mm |
|---|
| Voltage | 100–240 V AC, 50/60 Hz |
|---|
| Power | 60 W |
|---|
| Colours | Black, white |
|---|
| Compatibility | Fiorenzato; Mazzer and Mahlkönig with additional frame |
|---|
| In the box | QR code card, cleaning tool, grinds tray, screwdriver |
|---|
| Brand | Cinoart |
|---|
Who it is for
For cafés and home setups that want to standardise tamping at the push of a button and switch quickly between pressure levels. If you prefer to tamp by hand, our tamper collection has the right tools. Our opinion is one of many – the advice tool helps you choose.
What goes with it
For everyone who wants an affordable, precise puck screen and WDT tool: Normcore. If you want more fine-tuning: Weber Workshops. The same goes for scales: Normcore compact and reliable, Acaia with app and flow-rate display.
Delivery across Switzerland and to Liechtenstein in 2–4 working days, Click & Collect in Bern, Gerberngasse 44 and Zurich, Hagenholzstrasse 50b. Questions to [email protected] or by phone during business hours.
Frequently asked questions
How do I set the pressure?
Via three pressure buttons with 10, 20 and 30 kg. You can adjust and save the value of each button.
What does the Guided Leveling System do?
A guide on the tamper keeps the surface of the coffee bed level while tamping so that the puck is compressed evenly.
Does the PTB-FI fit my grinder?
It is designed for Fiorenzato grinders. With an additional frame it fits, according to the manufacturer, various Mazzer and Mahlkönig models, listed above under «Features».
Can I see the device before buying?
Yes, in our showrooms in Bern (Gerberngasse 44) and Zurich Oerlikon (Hagenholzstrasse 50b). Not every model is set up at all times, so write to us in advance at [email protected].
